Description

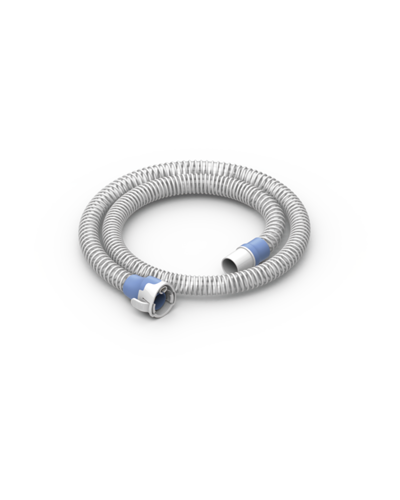

Heated Breathing Circuit
It connects the HFNC nasal oxygen tube with the high-flow humidification therapy device, used for heating the high-flow gas. This benefits the patient by allowing them to inhale heated and humidified high-flow gas.
- Rapid heating and precise constant temperature;
- Precise structure, stable connection and good air tightness;
- Good compatibility, plug and play;
- The pipe wall is strong and tough, avoiding pipe kinks and blockage.
Specification
| Project | Technical Parameters |
| Working Principle | Connect the HFNC nasal oxygen tube with the high-flow humidification therapy device to heat the high-flow gas so that the patient can inhale the heated and humidified high-flow gas |
| Initialization Time | Immediately after accessing the gas path. |
| Patient Type | Adult & Pediatric. |
| Patient Use Style | Single-patient-use. |
| Service Life | Single patient use only (Or continuous use for more than 6 hours). |
| Temperature | Operating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C. |
| Humidity | Operating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing. |
| Atmospheric Pressure | Operating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg. |
| Sterile OR Non-Sterile | Non-Sterile. |
| Latex Free | Not manufactured with natural rubber latex |
| Cable Length | 1.8m |
| Compatible with | AIRVO 2 & Comen |
| Inside diameter | 22mm |
| Outside diameter | 26mm |
